Metallized Polypropylene Film CapacitorCBB22 475J250V P10MM,Applied to AC motor applications

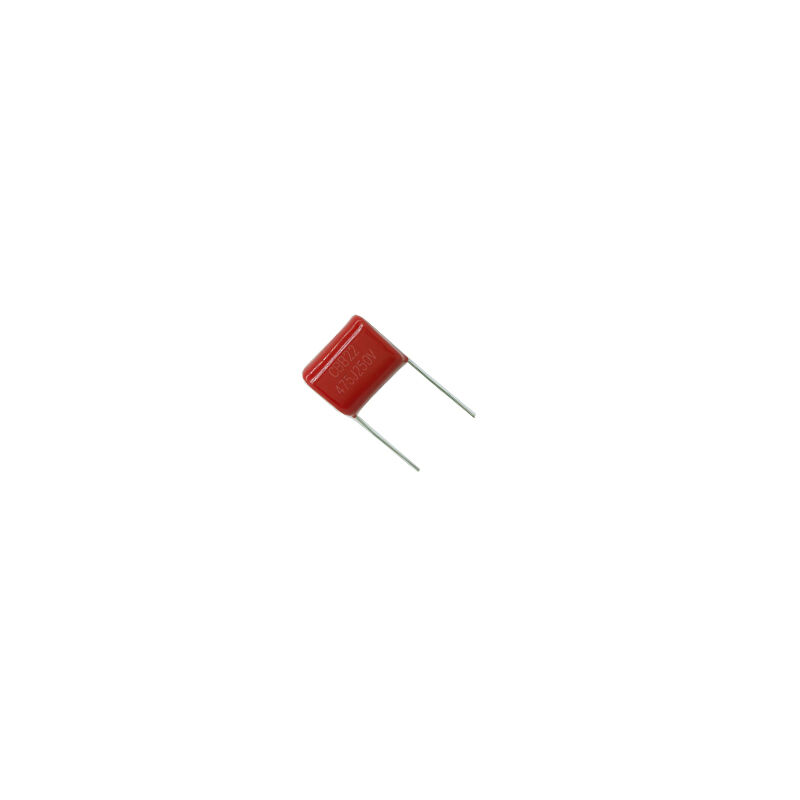

Большие изображения : Metallized Polypropylene Film CapacitorCBB22 475J250V P10MM,Applied to AC motor applications

Подробная информация о продукте:

Place of Origin:	CHINA
Фирменное наименование:	CL
Номер модели:	CBB22 475J250V P10MM

контакт

Metallized Polypropylene Film CapacitorCBB22 475J250V P10MM,Applied to AC motor applications

описание

Ведущий тип:	Радиальный, осевой	Длина вывода:	5 мм-50 мм
Расстояние ведущих:	2,5 мм-10 мм	Рабочая температура:	-40 ° C ~+85 ° C.
Размер:	Диаметр: 6,3 мм-18 мм; Длина: 6,3 мм-20 мм	Емкость терпимости:	+/- 5%
Устойчивость к изоляции:	> = 10000 мОм	Тип монтажа:	сквозь дыру
Выделить:	Metallized Polypropylene Film Capacitor CBB22 , CBB22 475J250V motor capacitor , Polypropylene film capacitor for AC motor

Metallized Polypropylene Film Capacitor CBB22 475J250V P10MM

Applied to AC motor applications

Product Description

The Metallized Polypropylene Film Capacitor is a highly reliable and efficient electronic component designed to meet the demanding requirements of modern electrical and electronic circuits. Known for its exceptional stability, low dissipation factor, and superior insulation properties, this capacitor is an ideal choice for a wide range of applications including filtering, coupling, decoupling, timing circuits, and energy storage.

The capacitor features a rated voltage range from 50V to 1000V, capacitance values from 0.01uF to 2.2uF, and insulation resistance of ≥10000MΩ. Its physical construction includes lead spacing options from 2.5mm to 10mm, with metallized polypropylene film that provides self-healing properties.

Key Features

Product Name: Metallized Polypropylene Film Capacitor
Type: Metallized Polypropylene Capacitor / Metalized Film Capacitor
Capacitance Tolerance: ±5%
Application: Power Supply, Automotive, Industrial
Operating Temperature Range: -40°C to +85°C
Size: Diameter 6.3mm to 18mm; Length 6.3mm to 20mm
Insulation Resistance: ≥ 10000MΩ

Technical Parameters

Application	Power Supply, Automotive, Industrial
Capacitance Tolerance	+/-5%
Insulation Resistance	>=10000MΩ
Rated Voltage	50V-1000V
Package Type	Tape And Reel
Lead Spacing	2.5mm-10mm
Operating Temperature	-40°C~+85°C
Lead Length	5mm-50mm
Lead Type	Radial, Axial
Size (Diameter)	6.3mm-18mm
Size (Length)	6.3mm-20mm

Applications

The Metallized Polypropylene Film Capacitor is widely used in power electronics, signal processing units, audio equipment, renewable energy systems (solar inverters, wind turbine controllers), medical devices, and instrumentation. Its stable capacitance and low loss properties make it ideal for applications requiring precision and reliability.

Customization

We offer extensive customization services including flexible lead type options (radial and axial), various capacitance values, and specific packaging requirements. Our capacitors are designed to operate efficiently in demanding conditions from -40°C to +85°C.

Support and Services

We provide comprehensive technical support, product testing, quality assurance, and certification assistance. Our capacitors undergo rigorous testing to meet international standards and customer specifications.

Packing and Shipping

Our capacitors are carefully packaged in anti-static material and custom-designed compartments within sturdy cardboard boxes. We offer flexible shipping options including air freight, sea freight, and express courier services with detailed documentation and tracking information.

Frequently Asked Questions

Q1: What is the brand name of this metallized polypropylene film capacitor?

A1: The brand name of this capacitor is CL.

Q2: Where is the CL metallized polypropylene film capacitor manufactured?

A2: This capacitor is manufactured in China.

Q3: What are the typical applications for CL metallized polypropylene film capacitors?

A3: These capacitors are commonly used in power supplies, motor run circuits, lighting ballasts, and various electronic devices requiring stable capacitance and low loss.

Q4: What are the key features of CL metallized polypropylene film capacitors?

A4: Key features include high insulation resistance, low dissipation factor, excellent self-healing properties, and high stability over a wide temperature range.

Q5: What capacitance range is available for CL metallized polypropylene film capacitors?

A5: CL offers a wide range of capacitance values, typically from a few nanofarads up to several microfarads, to suit different circuit requirements.
